PG9 M20 M25 wholesale ip68 series plastic cable wire joint terminal waterproof connector

FOB Reference Price:Get Latest Price
$0.85 - $1.45 / Pieces | 100 Piece/Pieces (Min. Order)
Lead Time:
Quantity(Pieces) 1 - 100 101 - 2000 2001 - 10000 >10000
Est. Time(days) 1 2 5 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
GREENWAY
Model Number:
M685
Type:
screw, quick connect
Application:
underwater & outdoor
Gender:
wire to wire
rated:
24A 450VAC
Certificate:
TUV ,CE,ROHS
Material:
Nylon 94v-2
conductor:
brass
Connector type:
line to line screw
Product name:
M25 T type Y type ip68 waterproof cable wire connector for underwater
color:
black
IP code:
IP68
wire cross section:
0.5-4.0
Pin:
2pin & 3pin &4 pin & 5pin
Supply Ability
Supply Ability:
300000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
PG9 M20 M25 wholesale ip68 series plastic cable wire joint terminal waterproof connector
Inner:50pcs/bag
Outer:300pcs/carton
Carton:32*25*32CM
Port
Shenzhen
Lead Time :
Quantity(Pieces) 1 - 100 101 - 2000 2001 - 10000 >10000
Est. Time(days) 1 2 5 To be negotiated
Video Description
Specification
PG9 M20 M25 wholesale ip68 series plastic cable wire joint terminal waterproof connector
Product Name
PG9 M20 M25 wholesale ip68 series plastic cable wire joint terminal waterproof connector
Model
M685
Rated current [A]
24 [A]
Rated voltage
450VAC
Connection technology
Screw connection
Installation temperature range
5℃~+60℃
Method of installation
Surface mounting
House material
Nylon /PA66
Material of connection parts
Brass
Housing
94V-2 grade
IP code
IP68
Wire cross -section area
0.5 mm²~4.0 mm²
Available cable diameter
4-8mm/ 8-12mm /10-14mm
Certificate
TUV,CE,ROHS
Application
outdoor ,underwater
Product description

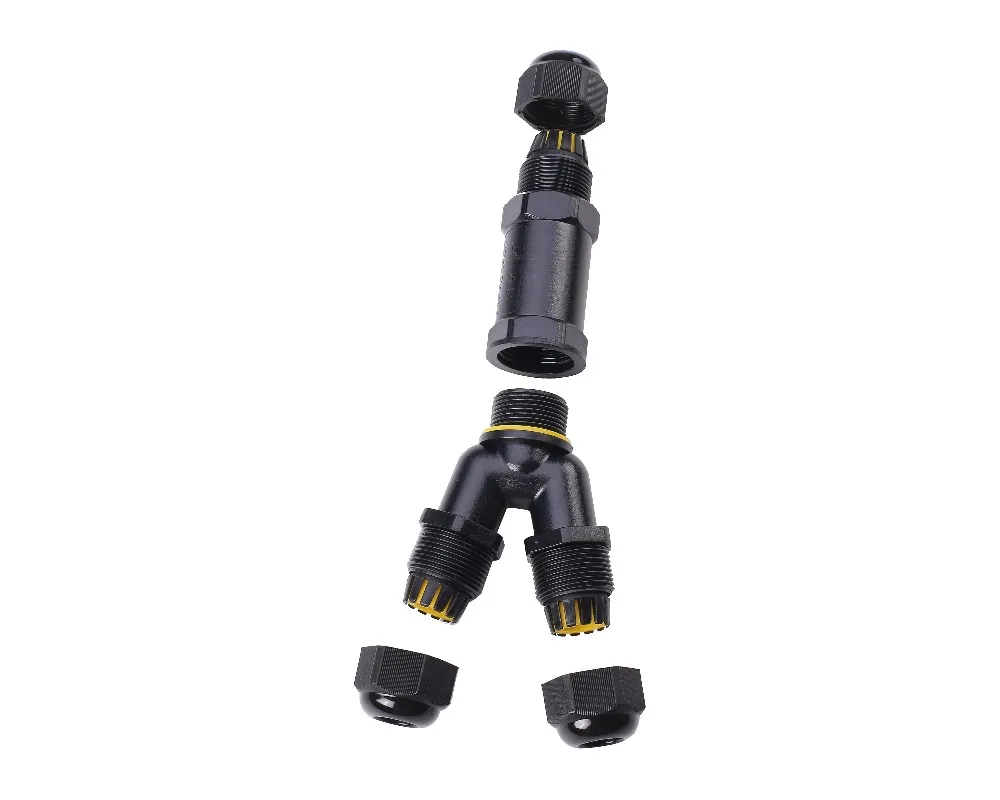

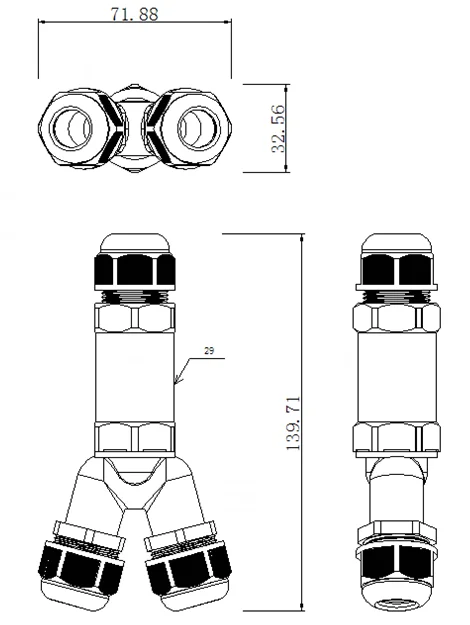

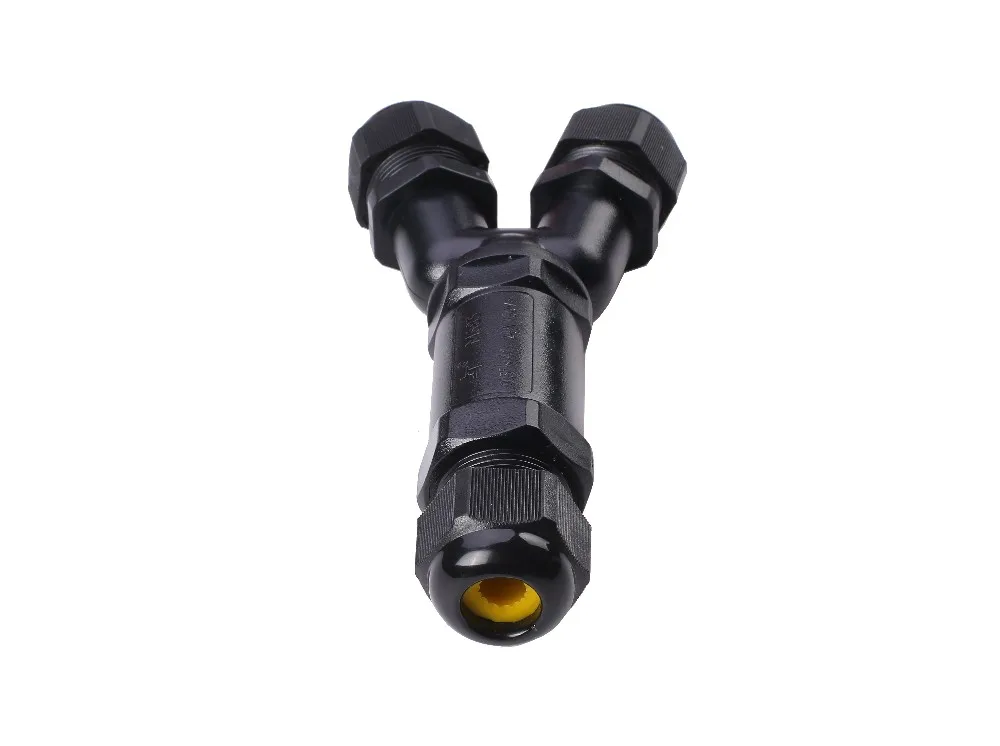

M685-Y Waterproof connector

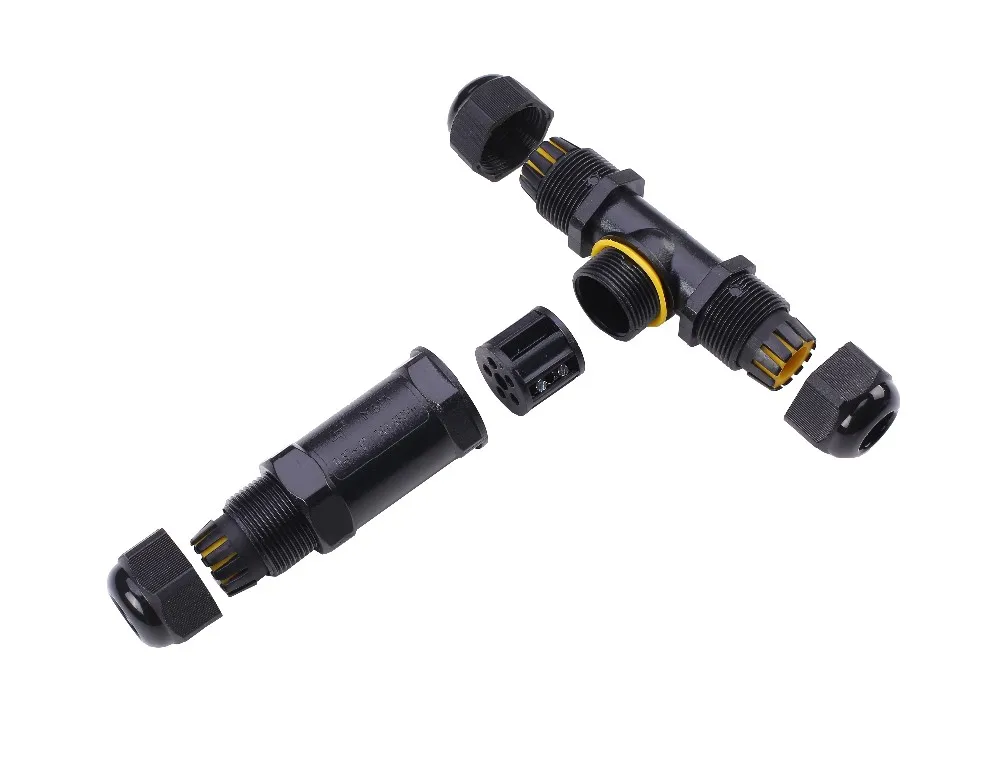

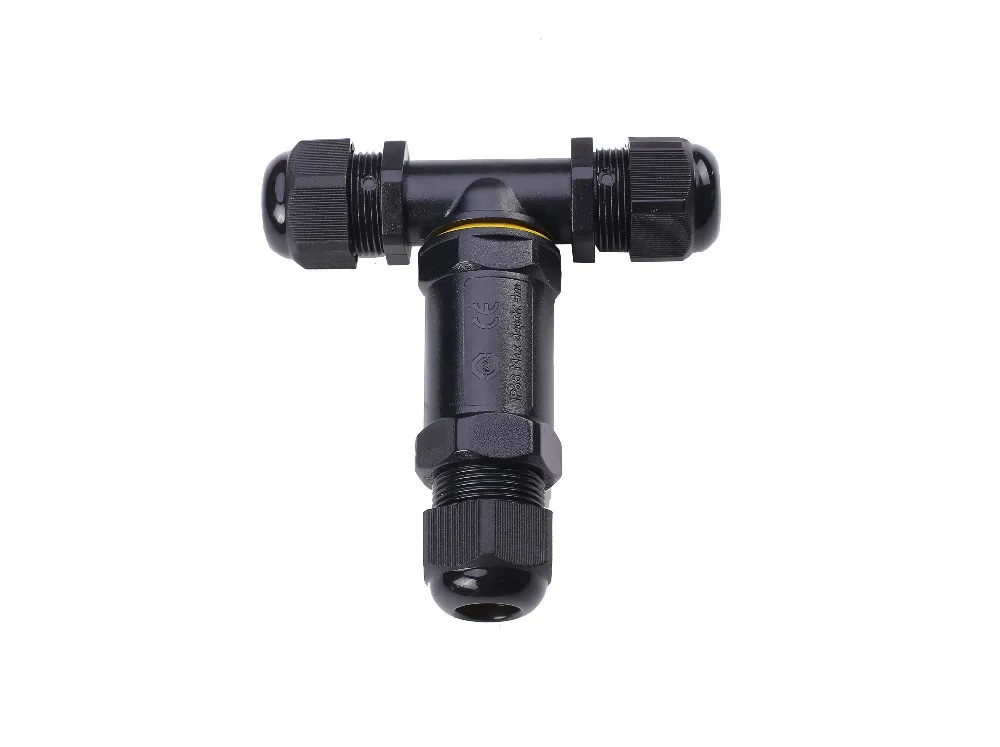

M685-T Waterproof connector

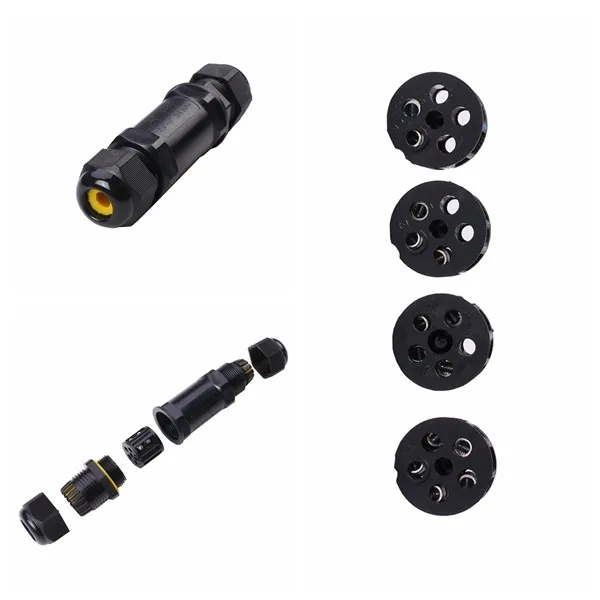

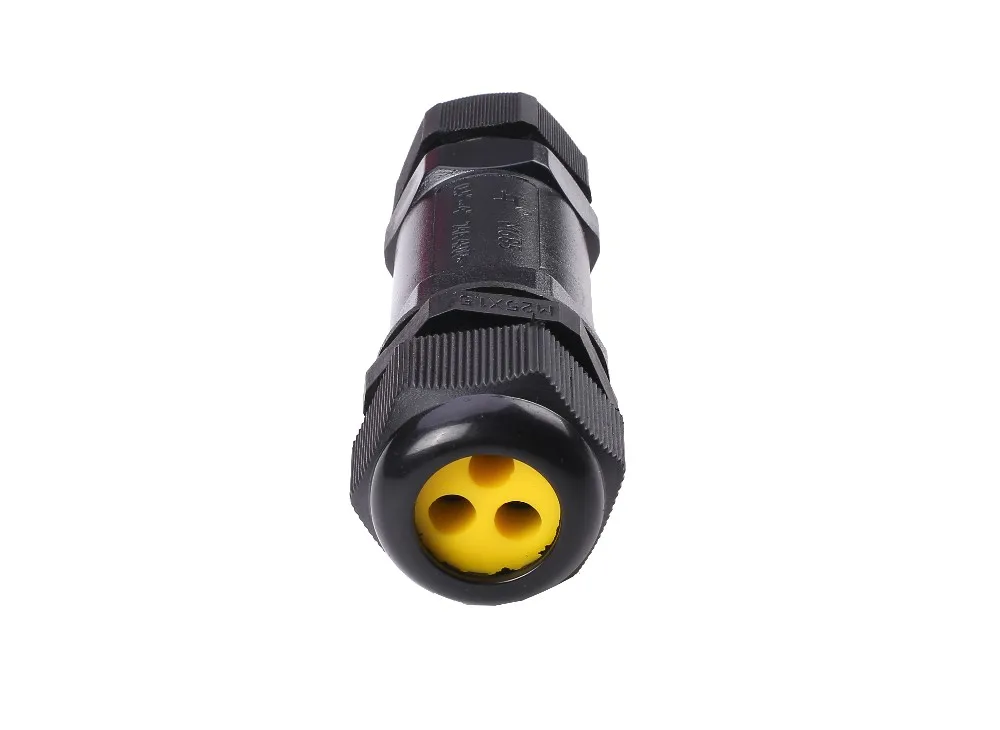

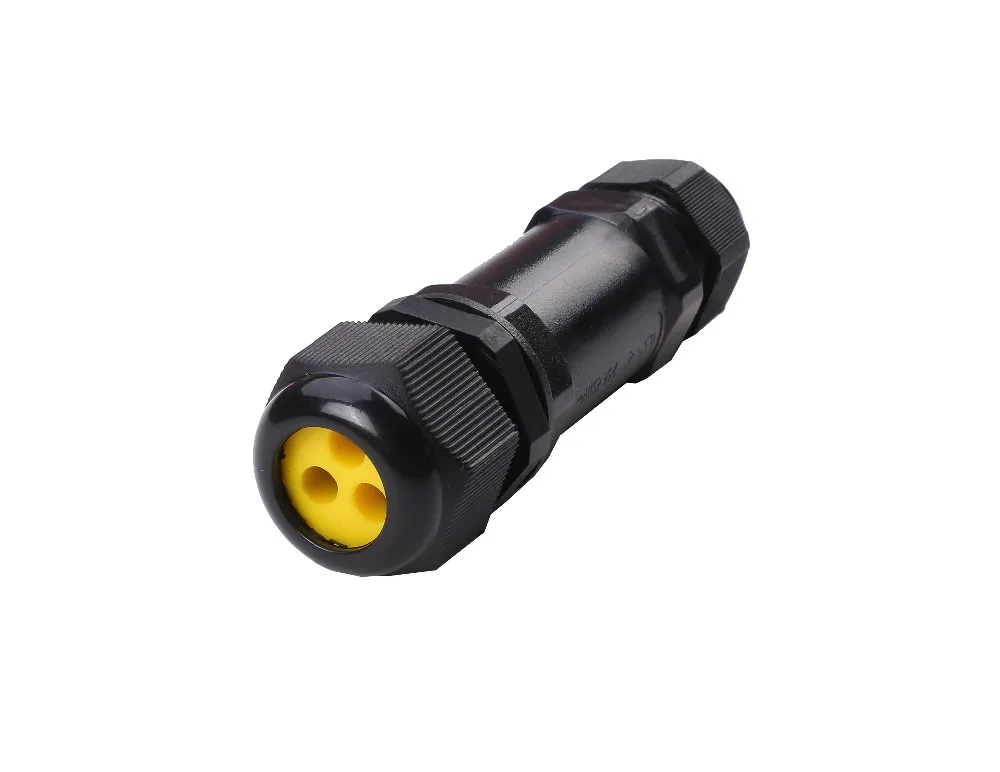

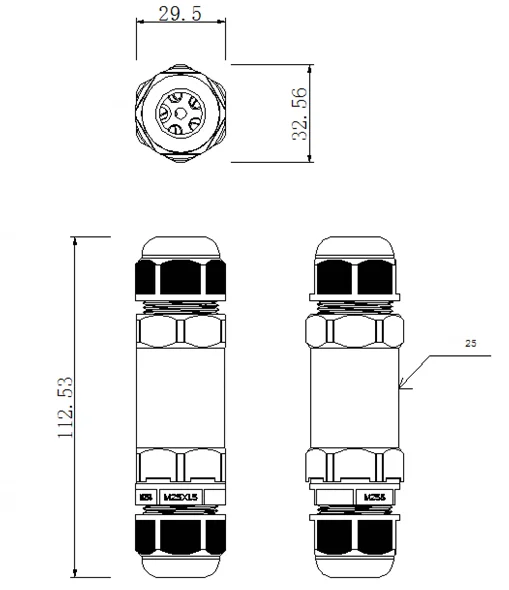

M685-I (2P , 3P ,4P, 5P)waterproof connector

Applications

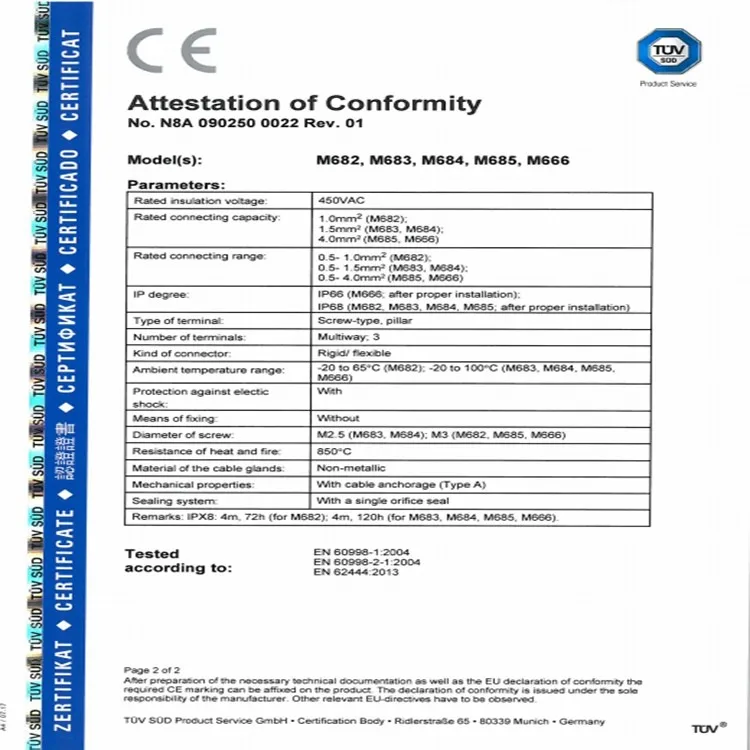

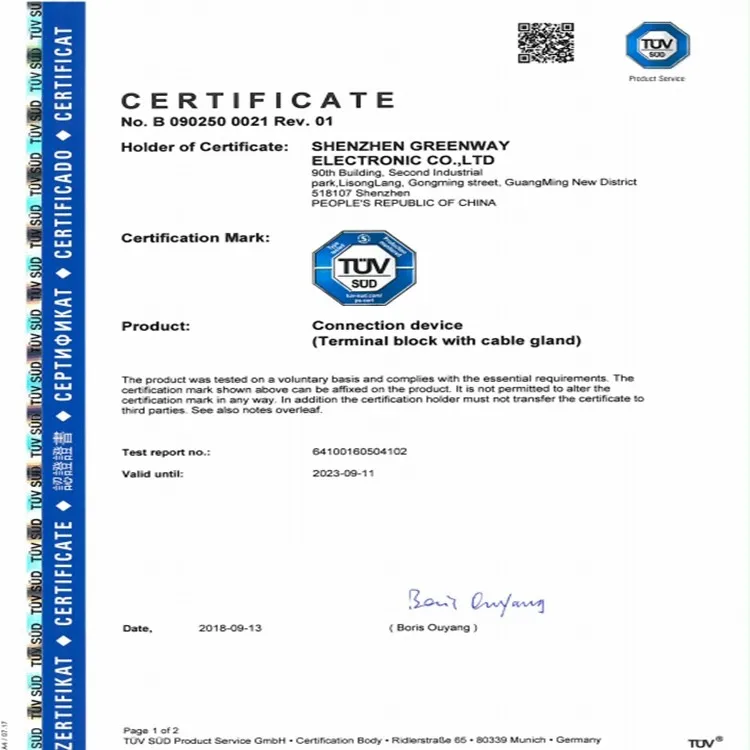

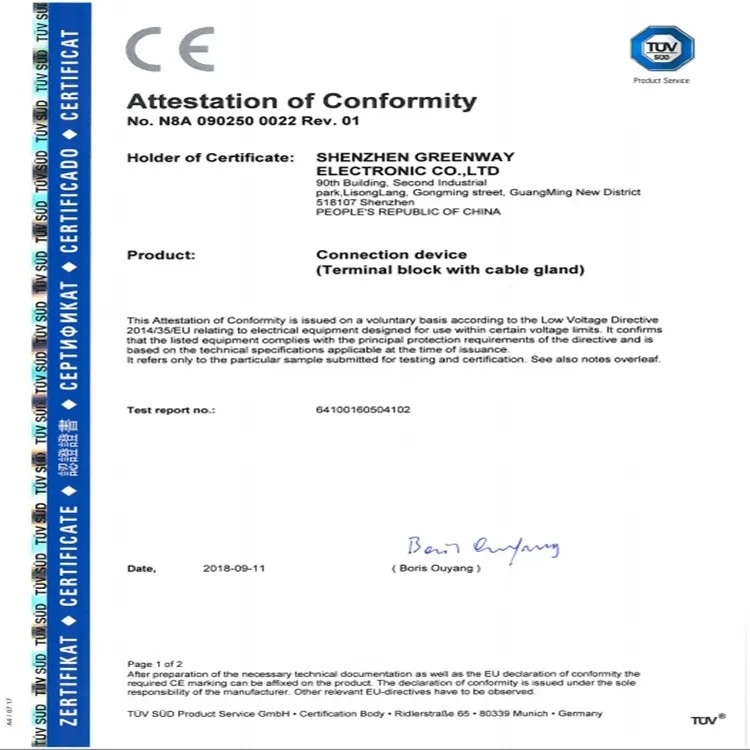

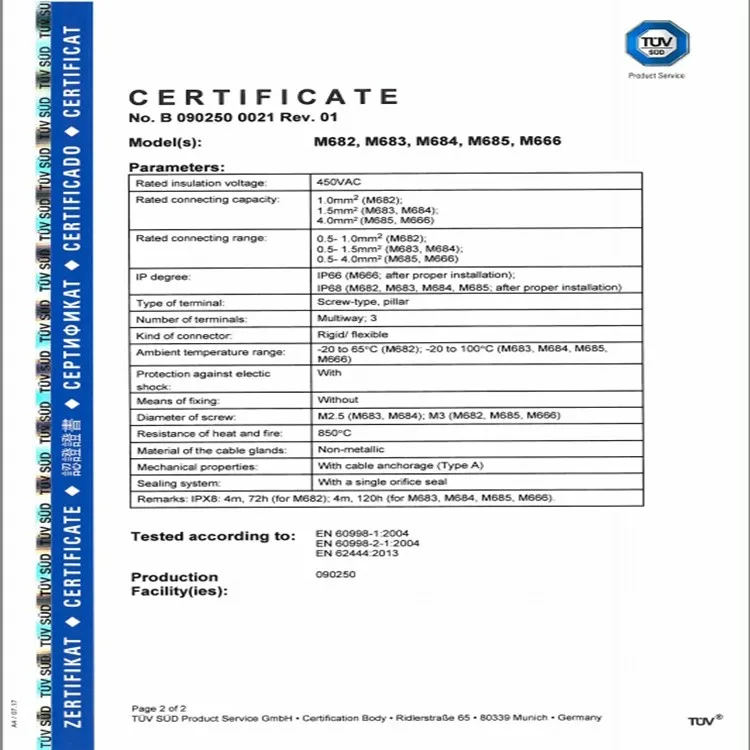

Certifications
Company Information

Greenway (Shenzhen) Electronics Co., Ltd

Greenway (Shenzhen) Electronics Co., Ltd. was set up in 2000 (the former one was Electronic Products Factory). We are committed to the production and research of lighting plastic components, with innovative ideas and high responsibility for product quality, Greenway won an excellent reputation in the industry. In recent years, our company pay more attention to the market demand, increase and improve the production equipment, recruit outstanding talents, expand the scale of our factory.

High-quality products can not be separated from the supply of high-quality components, so most switches and connectors of Greenway have been certificated by UL, CSA, PSE, ENEC, SAA, SEMKO, TUV, CQC, CE, RoHS and REACH, these international certifications not only demonstrate the high quality and reliability of our products, but also help our customers get their products approved and admired.

Brand Logo

Product logo is the deformation of Chinese knot which is a symbol of unity, hope to work with the older generation of industry colleagues for a better future!

Quality Objective

Engaged in product manufacturing and development for many years, we emphasize the quality start from the design source, and determined to exceed the target quality needs of our customers, providing high-quality products and high-quality services.

Product Range


We are determined to become the high-quality connectors and switches manufacturing experts, the products include a variety of connectors, switches, junction boxes and other lighting plastic


Contact us
Contct person:
Jessie Zhao
Mobile/Whatsapp
+86-15986823542
Tel
+86-0755-29756655-8007
Fax
+86-0755-29756646
Skype
Jessie-GLW
Wechat
jessiegt
